TRAXX RC75
Remote Controlled Slope Mower, for Industrial and Governmental Mowing
.jpg)

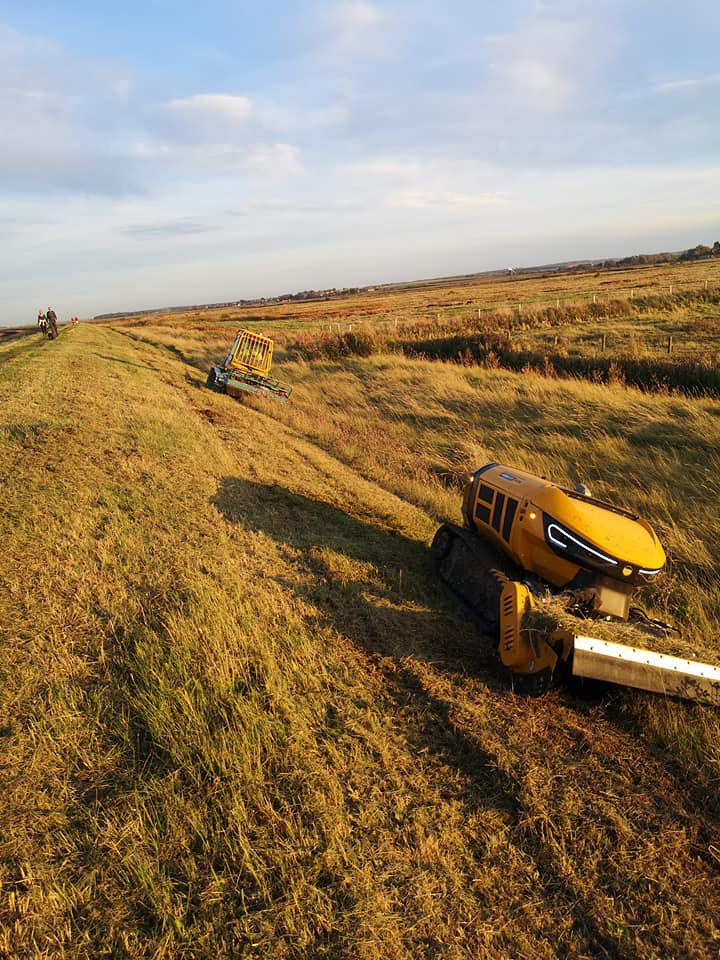

The TRAXX™RC75 remote-control slope-mower thrives in challenging, hazardous and confined areas perfect for tackling vegetation in the toughest terrain that other mowers cannot reach. These slope mowers take on up to 55 degrees with ease, and their 500ft remote control range puts operators out of harm’s way. TRAXX™RC75 enables you to work SAFER, FASTER and SMARTER than ever before.
| SPECIFICATIONS | |
|---|---|
| Engine | 75 hp |
| Working range | 500 ft |
| Weight | 2,870 lb (Without Attachment) |
| Overall Length | 90 in (Without Attachment) |
| Overall Width | 51 in |
| Overall Height | 41 in |
| Fuel Tank Capacity | 10 gal |
| HYDRAULICS | |
|---|---|
| Oil Tank Capacity | 5.3 gal (10.6 gal held in system) of biodegradable oil |
| Attachment Lift Capacity | 1,200 lb |
| Independent Intercooler | Standard |
| Independent Track Drive Circuit | 2x Closed Circuit Piston |
| Independent Flail Head Circuit | Closed Circuit Piston |
| TRACKS | |
|---|---|
| Rubber | Optional ~ max working angle 40° |
| Rubber with Steel Cleats | Standard ~ max working angle 55° |
| Self-Tightening | Standard |
| PERFORMANCE | |
|---|---|
| Potentiometer Speed Control (0 to 100%) |
1st gear (low range) Forward and back 0 - 2.2 mph 2nd gear (low range) Forward and back 0 - 4.3 mph |
| FIELD HEAD ATTACHMENTS | |
|---|---|
| Rotor speed | 3,300 RPM |
| Front and Rear Flaps | Standard |
| Flails | Y – Flails for cutting grass and brush J (hammer) – Flails for cutting brush & sapling |
| Rotor width | 51 in to 75 in |
| Cutting height range | .79 in. - 3.35 in. (5 positions) |
| (via roller adjustment) | Flail head can be lifted to cut higher |
| Hydraulic lift | -11.8 in to +15.7 in |
